Can display three parameters at same time
-
With parameter definitions, more easy to use
-
Supports parameter backup and upload/download
1、Operations and Display Interface Introduction
LCD panel is a Human-Machine-Interface (HMI) for debugging inverter parameters. The following is keypad function structure and display interface

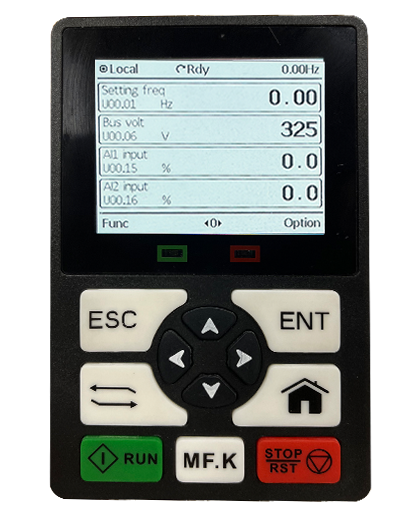

Figure 1-1 Keypad structure
Figure 1-2 Keypad interface

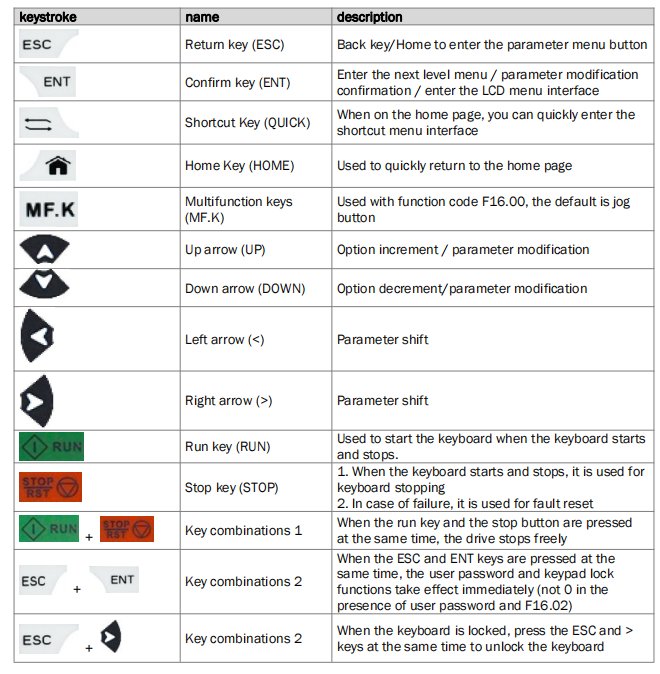

1.1 Operation panel button function introduction
